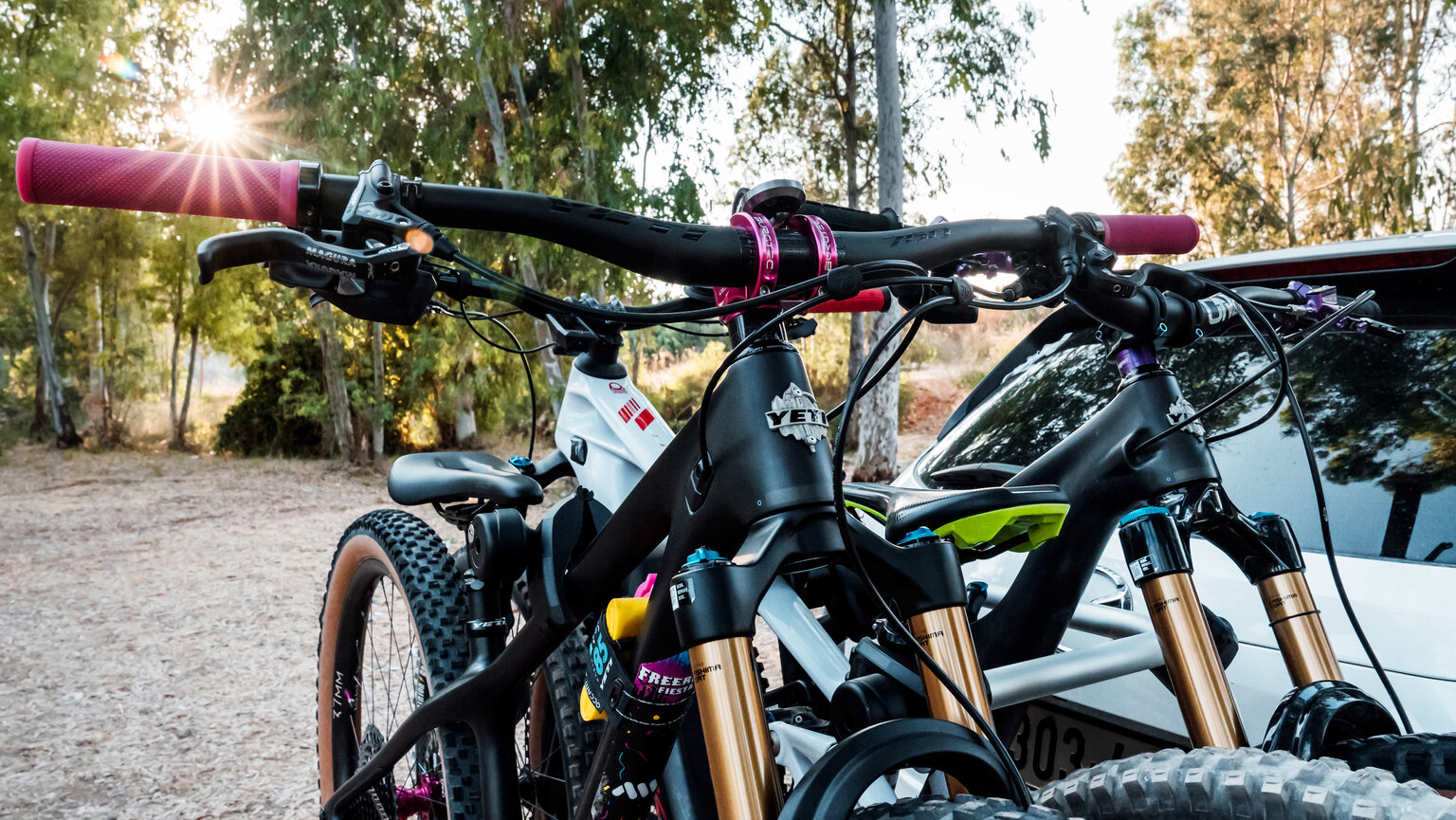

Coupling device bike rack Uebler

X31 S

  • Number Of Bikes 3
  • Folding angle 60 degrees
  • Foldable
  • No Park Assistance
  • Lightweight and compactly folding, enables easy handling and stowing away
  • Patented quick-release lock with anti-theft device
  • Bike rails easily folded using integrated handle
  • Extremely convenient tilt mechanism using a large foot pedal
  • Safe transport of all bicycle types and e-bikes
  • Low self-weight for high carrying convenience and large load capacity
  • Removable bike holders with one-hand operation and anti-theft device
  • Preset quick-release levers for easy and secure fastening of the U-bar
  • Ratchet system for secure fixing of the bike wheels, centred on the bike rail
  • “Eli” design lights series, slidable sideways
  • One key for all locks
  • Small folding measure
  • Extra Simple Montage
  • Tool-free Assembly
  • Anti-theft Device
  • E-Bike compatible
Technical Data X31 S
Article Nr 15770
Number Of Bikes
How many bikes can be carried on the towbar bike rack.
 3
E-Bike compatible Yes
Dimensions (W H D) 119 x 77 x 79 cm
Dimensions Folded (W H D) 63 x 24 x 79 cm
Weight 16,5 kg
Max Load
towbar load
The towbar load is an indicator of the weight carrying capacity of the towbar.

The registered towbar load can be found in the vehicle registration certificate under point 13 and has to be stringently observed.

The towbar load always depends on the vehicle and can therefore vary from type to type.

Not relevant for tailgate racks.
 33,5 kg for BL 50 kg
54 kg for BL 75 kg
Maximum wheelbase of the bike
Describes the distance from the front wheel hub to the rear wheel hub.

NOTE: Depending on the wheelbase of the bike, the hub of the bike may protrude beyond the wheel rail of the hitch carrier.
 130 cm
Tileable with bikes on
60° folding angle: sufficient for almost all limousines, station wagons, SUVs.
 60 degrees
Bike frame diameter up to 75mm round tube
75 x 45 mm oval tube
Bike Anti-theft device / lockable Yes
Trailer Anti-theft device / lockable Yes
Rail Gap
Generally describes the distance from the center of the wheel rail to the center of the wheel rail.
 190 / 180 mm
Distance from center of tow ball to center of 1st bike rail 16 cm
EuroBE / TÜV- and DEKRA-Approval Yes
Max wheel width of the bike
NOTE: Depending on the tire width, it can happen that the tires only stand up on the edges of the bicycle rails.
 2,8“ (ca. 7 cm) 4,5“ (ca. 11,5 cm)*

*with Toothed belt conversion kit for fatbikes (optional)
Quality Product made in Germany Yes

Assembly Instruction X31 S

Accessories

  • [Translate to English:] Transporttasche /X-Serie für Uebler Kupplungsträger X31 S
    Transport bag / X-Series X31 SArticle Number 19680
  • [Translate to English:] Auffahrschiene für Uebler Kupplungsträger der Serien P und X; faltbar; inkl. Tasche
    Loading ramp / series X and PArticle Number 19940

    for Uebler towbar bike rack of series X and P; foldable; including bag

  • [Translate to English:] Abstandshalter mit Zahnband für 1. Fahrrad abnehmbar; abschließbar; mit Carbonschutz; für alle Fahrradrahmen (auch Kastenrahmen) bis 120 x 80 mm
    Bike holder with toothed belt for 1st bikeArticle Number 19960

    removable; lockable; with carbon protection; for all bike frames (including boxsection frames) up to 120x80 mm

  • [Translate to English:] Abstandshalter mit Zahnband für 2. Fahrrad (für 3er-Träger) abnehmbar; abschließbar; mit Carbonschutz; Für alle Fahrradrahmen (auch Kastenrahmen) bis 120 x 80 mm
    Bike holder with toothed belt for 2nd bike (for 3-bike rack)Article Number 19980

    removable; lockable; with carbon protection; for all bike frames (including box-section frames) up to 120x80 mm

  • [Translate to English:] Abstandshalter mit Zahnband für 3./4. Fahrrad (von Rad zu Rad) abschließbar; mit Carbonschutz; für alle Fahrradrahmen (auch Kastenrahmen) bis 120 x 80 mm
    Bike holder with toothed belt for 3rd/4th Bike (from bike to bike)Article Number 19990

    lockable; with carbon protection; for all bike frames (including box-section frames) up to 120x80 mm

Spare Parts

  • [Translate to English:] Schelle für Abstandshalter
    Bracket for bike holderArticle Number Art.-Nr. E1055

    19610, 19620, 19630, 19880, 19890, 19900

  • [Translate to English:] Kennzeichenträger
    Plate holderArticle Number E1639

    X21 S, X31 S, P22 S, P32 S, F22, F32, F32 XL, F42

  • [Translate to English:] Rücklichtglas (Links)
    Rear light glass (left)Article Number E1636

    X21 S, X31 S, P22 S, P32 S, F22, F32, F32 XL, F42

  • [Translate to English:] Rücklichtglas (Rechts)
    Rear light glass (right)Article Number E1637

    X21 S, X31 S, P22 S, P32 S, F22, F32, F32 XL, F42

  • [Translate to English:] Leuchtenarm mit Scharnier (Links)
    Light arm, including hinge (left side)Article Number E1645

    X21 S, X31 S, X21 S-DC, F22, F32, F32 XL, F42

  • [Translate to English:] Leuchtenarm mit Scharnier (Rechts)
    Light arm, including hinge (right side)Article Number E1646

    X21 S, X31 S, X21 S-DC, F22, F32, F32 XL, F42

  • Rear light setArticle Number E1626

    including lights protector,cable & connector

    X31 S, F32, F32 XL

  • [Translate to English:] Ersatzschlüssel (1 Satz = 2 Stück)
    Spare keys (1 set = 2 pcs.)Article Number E1550

    Please mention your locking number.

  • Foot pedal for bike rackArticle Number Art.-Nr. E1662
