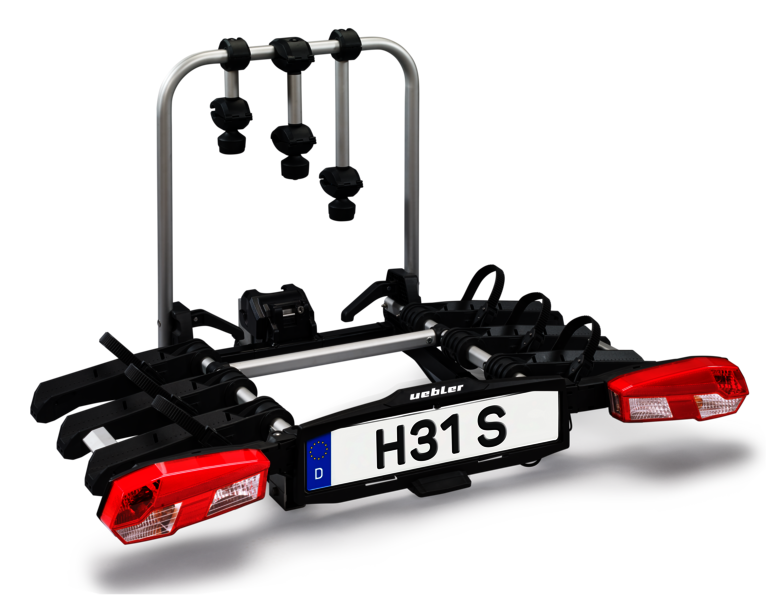

Coupling device bike rack Uebler

H31 S

  • Number Of Bikes 3
  • Folding angle 90
  • Foldable
  • No Park Assistance

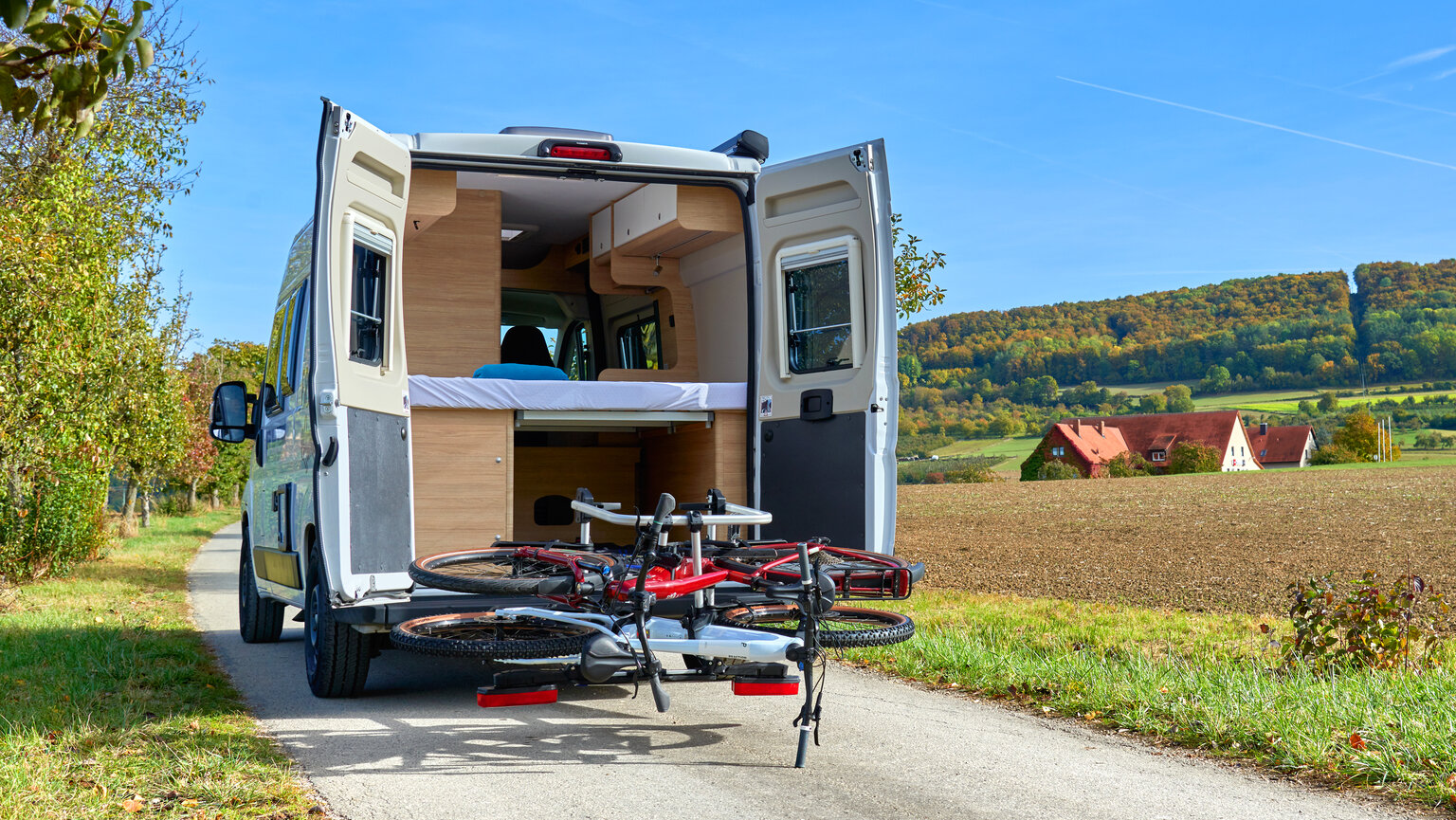

  • Easy transport of bicycles for vans / panel vans with rear doors and vehicles with deep tailgate
  • Easy and effortless attachment to the towbar by lever-less, patented IQ quick-release fastener
  • removable bike holder and one-hand operation
  • new extra-wide bike rails for tyre width up to 4.5 inches
  • Foldable bike rail- and rear light unit
  • Ratchet system for secure fixation of the bicycles on the bike rail
  • Particularly light at only 20 kg and enables to its low dead weight to load a large payload without additional bracing
  • Convenient activation of the tilt-down function by foot lever
  • Quick-release lever for fixing the wide carrier frame
  • Simultaneously locking anti-theft-device
  • Quality product made in Germany with a 3-year warranty

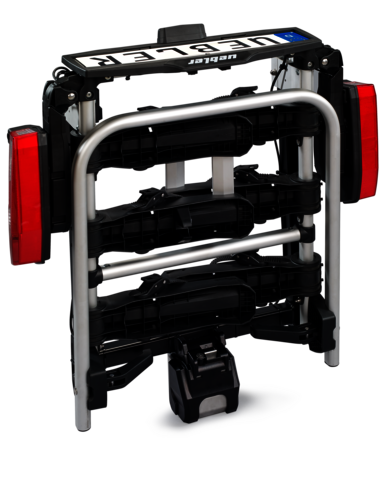

  • Small folding measure
  • Extra Simple Montage
  • Tool-free Assembly
  • Anti-theft Device
  • E-Bike compatible
Technical Data H31 S
Article Nr 18180
Number Of Bikes
How many bikes can be carried on the towbar bike rack.
 3
E-Bike compatible Yes
Dimensions (W H D) 128 x 73 x 88 cm
Dimensions Folded (W H D) 83 x 21 x 85 cm
Weight 20 kg
Max Load
towbar load
The towbar load is an indicator of the weight carrying capacity of the towbar.

The registered towbar load can be found in the vehicle registration certificate under point 13 and has to be stringently observed.

The towbar load always depends on the vehicle and can therefore vary from type to type.

Not relevant for tailgate racks.
 60 kg from SL 80 kg
Maximum wheelbase of the bike
Describes the distance from the front wheel hub to the rear wheel hub.

NOTE: Depending on the wheelbase of the bike, the hub of the bike may protrude beyond the wheel rail of the hitch carrier.
 130 cm
Tileable with bikes on
90° folding angle: particularly suitable for vehicles with a very low tailgate (e.g. VW T5/T6, Caddy, Mercedes V-Class and similar designs).

Due to different trailer hitch types and their varying installation situations, a trial installation is recommended to ensure that the tailgate opens.

ATTENTION: with a 90° folding angle, depending on the handlebar width, there is a possibility that the bicycle handlebars may collide with the ground.
 90
Bike Anti-theft device / lockable Yes
Trailer Anti-theft device / lockable Yes
Rail Gap
Generally describes the distance from the center of the wheel rail to the center of the wheel rail.
 190 / 180 cm
Distance from center of tow ball to center of 1st bike rail 23 cm
EuroBE / TÜV- and DEKRA-Approval Yes
Quality Product made in Germany Yes

Assembly Instruction H31 S

Accessories

  • Transport bag / H-SeriesArticle Number 25150

    H21 Z, H31 S

  • [Translate to English:] Auffahrschiene mit Überfahrschiene für Uebler Kupplungsträger der Serien i und F; faltbar; inkl. Tasche
    Drive-on and drive-over ramp (foldable) / series i and FArticle Number 19950

    for Uebler towbar bike rack of series i and F; foldable; including bag

  • [Translate to English:] Polsterung (Carbonschutz) für Zahnband (1 Satz = 4 Stück)
    Padding (carbon protection)Article Number 25050

    for toothed belts; (1 set = 4 pieces)

  • [Translate to English:] Zahnband-Umrüstkit für Fatbikes / Serien i und F Länge 46 cm; bis 4,5“ Reifenbreite; (1 Satz = 4 Stück)
    Toothed belt conversion kit for fatbikes / for the series i and FArticle Number 25010

    Length 46 cm; up to 4.5” tyre width; (1 set = 4 pieces)

  • [Translate to English:] Abstandshalter für 1. Rad, längere Ausführung abnehmbar; abschließbar; für Fahrradrahmen bis 75 mm Rundrohr oder 75 x 45 mm Ovalrohr
    Bike holder for 1st bike, longer versionArticle Number 19930

    removable; lockable; for bike frames up to 75 mm round tube or 75 x 45 mm oval tube

  • [Translate to English:] Abstandshalter für 2. Rad (für 2er-Träger) abnehmbar; abschließbar; für Fahrradrahmen bis 75 mm Rundrohr oder 75 x 45 mm Ovalrohr
    Bike holder for 2nd bike (for 2-bike rack)Article Number 19890

    removable; lockable; for bike frames up to 75 mm round tube or 75 x 45 mm oval tube

  • [Translate to English:] Abstandshalter 3./4. Rad (von Rad zu Rad) abschließbar; für Fahrradrahmen bis 75 mm Rundrohr oder 75 x 45 mm Ovalrohr
    Bike holder 3rd/4th bike (from bike to bike)Article Number 19910

    lockable; for bike frames up to 75 mm round tube or 75 x 45 mm oval tube

Spare Parts

  • [Translate to English:] Ersatzschlüssel (1 Satz = 2 Stück)
    Spare keys (1 set = 2 pcs.)Article Number E1550

    Please mention your locking number.

  • [Translate to English:] Schelle für Abstandshalter
    Bracket for bike holderArticle Number Art.-Nr. E1055

    19610, 19620, 19630, 19880, 19890, 19900

  • [Translate to English:] Ratsche (Schnellverschluss)
    Ratchet (quick-lock)Article Number E1887
  • [Translate to English:] Zahnriemen (Schnellverschluss) Länge 360 mm
    Toothed belt (quick-lock)Article Number E1888

    length 360 mm

  • [Translate to English:] Zahnriemen (Schnellverschluss) Länge 460 mm
    Toothed belt (screwed)Article Number E1898

    length 460 mm

  • [Translate to English:] Ratsche – komplett (Schnellverschluss) inkl. Zahnriemen 360 mm
    Ratched - complete (quick-lock)Article Number E1889

    including toothed belt 360 mm

  • [Translate to English:] Kennzeichenträger
    Plate holderArticle Number E1863

    i21, i31 (not for DC-type)

  • [Translate to English:] Abschließbare Knebelmutter
    lockable twist gripArticle Number 19640
  • [Translate to English:] Abschließbare Knebelmutter
    lockable twist gripArticle Number 19650
  • [Translate to English:] Leuchtenkabel inkl. Steckern für Lex Leuchte, 3er
    Lighting cable including plugs for Lex lights, 3erArticle Number E1925

    H31 S, H31 S-DC

  • [Translate to English:] Rückleuchte Lex links
    Taillight (left)Article Number E1920

    H21 Z, H21 Z-DC, H31 S, H31 S-DC

  • [Translate to English:] Rückleuchte Lex rechts
    Taillight (right)Article Number E1921

    H21 Z, H21 Z-DC, H31 S, H31 S-DC

  • Rear light glass Lex (left)Article Number E1922
  • Rear light glass Lex (right)Article Number E1923

    H21 Z, H21 Z-DC, H31 S, H31 S-DC

  • [Translate to English:] Leuchtenarm inkl. Deckel und Scharnier (H-Serie)
    Light arm including lid and hinge (H-Serie)Article Number E1926

    H21 Z, H21 Z-DC, H31 S, H31 S-DC
