Coupling device bike rack Uebler

i31 Z-DC

  • Number Of Bikes 3
  • Folding angle 60 degrees
  • Foldable

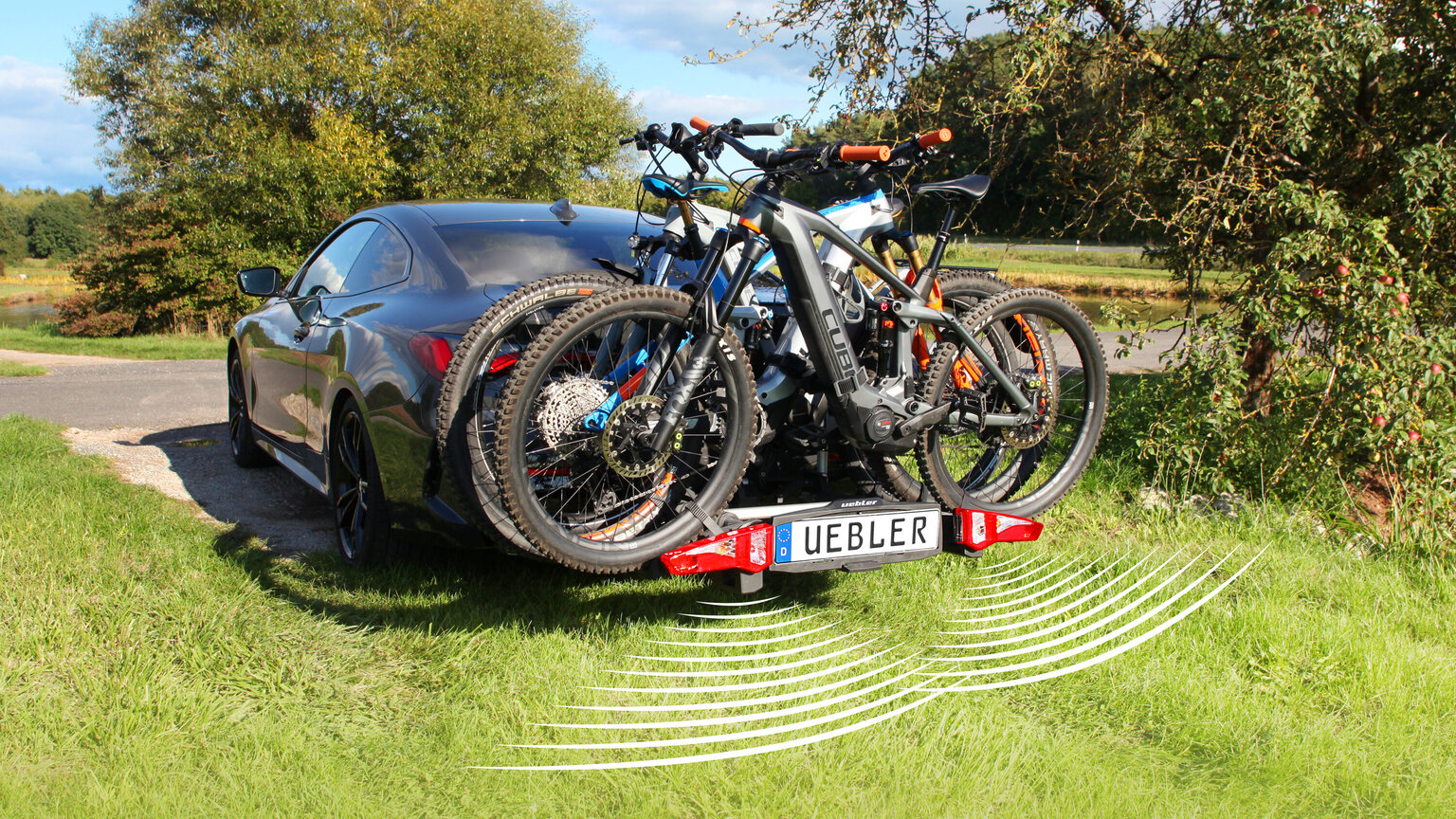

  • Park Assistance
  • Easy and labour-saving attachment to the towbar with leverless, patented IQ quick-release fastener
  • Patented, removable spacers with single-hand operation
  • New extra-wide wheel rails for tyre widths up to 4.5 inches
  • Foldable wheel rail and lamp unit
  • Ratchet system for securely attaching the wheels to the wheel rail
  • Convenient release of the folding function with foot lever
  • Quick-release lever for fixing the wide carrier frame
  • Simultaneously locking anti-theft device
  • Low unladen weight for high carrying comfort and large payloads
  • Small folding measure
  • Extra Simple Montage
  • Tool-free Assembly
  • Anti-theft Device
  • E-Bike compatible
Technical Data i31 Z-DC
Article Nr 18130-DC
Number Of Bikes
How many bikes can be carried on the towbar bike rack.
 3
E-Bike compatible Yes
Dimensions (W H D) 119 x 89 x 78 cm
Dimensions Folded (W H D) 61 x 22 x 82 cm
Weight 18 kg
Max Load
towbar load
The towbar load is an indicator of the weight carrying capacity of the towbar.

The registered towbar load can be found in the vehicle registration certificate under point 13 and has to be stringently observed.

The towbar load always depends on the vehicle and can therefore vary from type to type.

Not relevant for tailgate racks.
 57 kg for BL 75 kg
72 kg for BL 90 kg
Maximum wheelbase of the bike
Describes the distance from the front wheel hub to the rear wheel hub.

NOTE: Depending on the wheelbase of the bike, the hub of the bike may protrude beyond the wheel rail of the hitch carrier.
 130 cm
Tileable with bikes on
60° folding angle: sufficient for almost all limousines, station wagons, SUVs.
 60 degrees
Bike frame diameter up to 115 mm round tube or
120 x 80 mm rectangular tube or
95 x 95mm square tube
Bike Anti-theft device / lockable Yes
Trailer Anti-theft device / lockable Yes
Rail Gap
Generally describes the distance from the center of the wheel rail to the center of the wheel rail.
 220 / 200 mm
Distance from center of tow ball to center of 1st bike rail 20 cm
EuroBE / TÜV- and DEKRA-Approval Yes
Max wheel width of the bike
NOTE: Depending on the tire width, it can happen that the tires only stand up on the edges of the bicycle rails.
 3“ (ca. 7,6 cm) 4,5“ (ca. 11,5 cm)*

*with Toothed belt conversion kit for fatbikes (optional)
Quality Product made in Germany Yes

Assembly Instruction i31 Z-DC

Accessories

  • [Translate to English:] Transporttasche /i-Serie für Uebler Kupplungsträger i31-Z
    Transport bag / i-Series i31-ZArticle Number 25030
  • [Translate to English:] Auffahrschiene mit Überfahrschiene für Uebler Kupplungsträger der Serien i und F; faltbar; inkl. Tasche
    Drive-on and drive-over ramp (foldable) / series i and FArticle Number 19950

    for Uebler towbar bike rack of series i and F; foldable; including bag

Spare Parts

  • [Translate to English:] Schelle für Abstandshalter
    Bracket for bike holderArticle Number Art.-Nr. E1055

    19610, 19620, 19630, 19880, 19890, 19900

  • [Translate to English:] Ratsche (Schnellverschluss)
    Ratchet (quick-lock)Article Number E1887
  • [Translate to English:] Zahnriemen (Schnellverschluss) Länge 360 mm
    Toothed belt (quick-lock)Article Number E1888

    length 360 mm

  • [Translate to English:] Zahnriemen (Schnellverschluss) Länge 460 mm
    Toothed belt (screwed)Article Number E1898

    length 460 mm

  • [Translate to English:] Ratsche – komplett (Schnellverschluss) inkl. Zahnriemen 360 mm
    Ratched - complete (quick-lock)Article Number E1889

    including toothed belt 360 mm

  • [Translate to English:] Rücklichtglas (Links)
    Rear light glass (left)Article Number E1872

    i21, i21 Z, i31, i31 Z, i41 S, i21-DC, i21 Z-DC, i31-DC, i31 Z-DC, i41 S-DC, F14, F24, F34

  • [Translate to English:] Rücklichtglas (Rechts)
    Rear light glass (right)Article Number E1873

    i21, i21 Z, i31, i31 Z, i41 S, i21-DC, i21 Z-DC, i31-DC, i31 Z-DC, i41 S-DC, F14, F24, F34

  • [Translate to English:] Kennzeichenträger
    Plate holderArticle Number E1863

    i21, i31 (not for DC-type)

  • [Translate to English:] Leuchtenanbindung (Links)
    light arm including lid (left side)Article Number E1903

    i21 Z, i31 Z, i41 S

  • [Translate to English:] Leuchtenanbindung (Rechts)
    light arm including lid (right side)Article Number E1904

    i21 Z, i31 Z, i41 S

  • [Translate to English:] Rückleuchtenset
    Rear light setArticle Number E1906

    including cable & connector (not for DC-type)

    i21 Z
    i31
    i31 Z
    F34

  • [Translate to English:] Ersatzschlüssel (1 Satz = 2 Stück)
    Spare keys (1 set = 2 pcs.)Article Number E1550

    Please mention your locking number.
