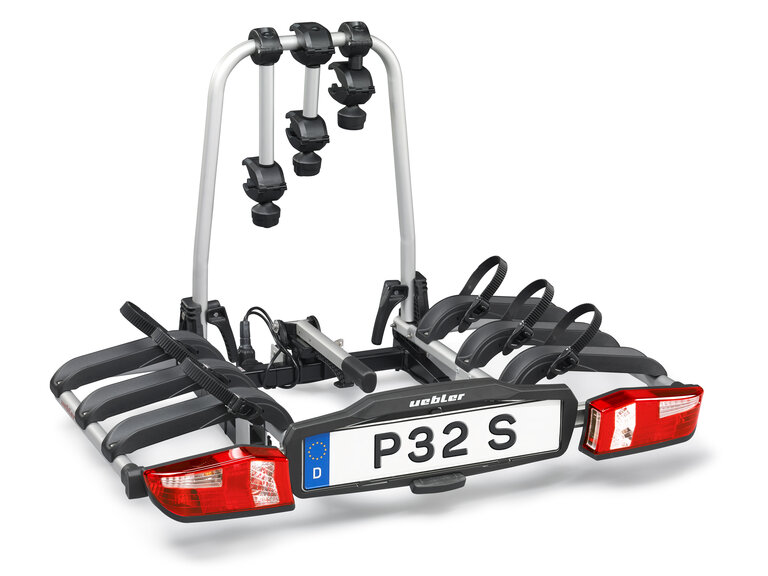

Coupling device bike rack Uebler

P32 S

  • Number Of Bikes 3, expandable to 3 (Article Nr. 19720)
  • Folding angle 60 degrees
  • Not Foldable
  • No Park Assistance
  • Stable, safe and practical
  • Patented quick-release lock with anti-theft device
  • Extremely convenient tilt mechanism using a large foot pedal
  • Safe transport of all bike types and e-bikes
  • Low self-weight for high carrying convenience and large load capacity
  • Removable bike holders with one-hand operation and anti-theft device
  • Preset quick-release levers for easy and secure fastening of the U-bar
  • Ratchet system for optimum fi xing of the bike wheels, centred on the bike rail
  • “Eli” design lights series, slidable sideways
  • One key for all locks
  • Extra Simple Montage
  • Tool-free Assembly
  • Anti-theft Device
  • E-Bike compatible
Technical Data P32 S
Article Nr 15810
Number Of Bikes
How many bikes can be carried on the towbar bike rack.
 3, expandable to 3 (Article Nr. 19720)
E-Bike compatible Yes
Dimensions (W H D) 115 x 77 x 79 cm
Weight 16 kg (17 kg with extension)
Max Load
towbar load
The towbar load is an indicator of the weight carrying capacity of the towbar.

The registered towbar load can be found in the vehicle registration certificate under point 13 and has to be stringently observed.

The towbar load always depends on the vehicle and can therefore vary from type to type.

Not relevant for tailgate racks.
 34 kg for BL 50 kg
54 kg for BL 75 kg
Maximum wheelbase of the bike
Describes the distance from the front wheel hub to the rear wheel hub.

NOTE: Depending on the wheelbase of the bike, the hub of the bike may protrude beyond the wheel rail of the hitch carrier.
 125 cm
Tileable with bikes on
60° folding angle: sufficient for almost all limousines, station wagons, SUVs.
 60 degrees
Bike frame diameter up to 75mm round tube
75 x 45 mm oval tube
Bike Anti-theft device / lockable Yes
Trailer Anti-theft device / lockable Yes
Rail Gap
Generally describes the distance from the center of the wheel rail to the center of the wheel rail.
 190 / 180 mm (3. zu 4. Rad)
Distance from center of tow ball to center of 1st bike rail 16 cm
EuroBE / TÜV- and DEKRA-Approval Yes
Max wheel width of the bike
NOTE: Depending on the tire width, it can happen that the tires only stand up on the edges of the bicycle rails.
 2,8“ (ca. 7 cm) 4,5“ (ca. 11,5 cm)*

*with Toothed belt conversion kit for fatbikes (optional)
Quality Product made in Germany Yes

Assembly Instruction P32 S

Accessories

  • [Translate to English:] Auffahrschiene für Uebler Kupplungsträger der Serien P und X; faltbar; inkl. Tasche
    Loading ramp / series X and PArticle Number 19940

    for Uebler towbar bike rack of series X and P; foldable; including bag

  • [Translate to English:] Erweiterungskit für 4. Rad für Uebler Kupplungsträger P32 S
    Extension kit for 4th bike / P32 SArticle Number 19720

    for Uebler towbar bike rack P32 S

  • [Translate to English:] Abstandshalter mit Zahnband für 1. Fahrrad abnehmbar; abschließbar; mit Carbonschutz; für alle Fahrradrahmen (auch Kastenrahmen) bis 120 x 80 mm
    Bike holder with toothed belt for 1st bikeArticle Number 19960

    removable; lockable; with carbon protection; for all bike frames (including boxsection frames) up to 120x80 mm

  • [Translate to English:] Abstandshalter mit Zahnband für 2. Fahrrad (für 3er-Träger) abnehmbar; abschließbar; mit Carbonschutz; Für alle Fahrradrahmen (auch Kastenrahmen) bis 120 x 80 mm
    Bike holder with toothed belt for 2nd bike (for 3-bike rack)Article Number 19980

    removable; lockable; with carbon protection; for all bike frames (including box-section frames) up to 120x80 mm

  • [Translate to English:] Abstandshalter mit Zahnband für 3./4. Fahrrad (von Rad zu Rad) abschließbar; mit Carbonschutz; für alle Fahrradrahmen (auch Kastenrahmen) bis 120 x 80 mm
    Bike holder with toothed belt for 3rd/4th Bike (from bike to bike)Article Number 19990

    lockable; with carbon protection; for all bike frames (including box-section frames) up to 120x80 mm

  • [Translate to English:] Zahnband-Umrüstkit für Fatbikes für die Serien X und P Länge 46 cm; bis 4,5“ Reifenbreite; (1 Satz = 4 Stück)
    Toothed belt conversion kit for fatbikes / for the series X and PArticle Number 19870

    Length 46 cm; up to 4.5” tyre width; (1 set = 4 pieces)

Spare Parts

  • [Translate to English:] Schelle für Abstandshalter
    Bracket for bike holderArticle Number Art.-Nr. E1055

    19610, 19620, 19630, 19880, 19890, 19900

  • [Translate to English:] Ratsche (verschraubt)
    Ratchet (screwed)Article Number E1875

    ratchet (screwed) separately

  • [Translate to English:] Zahnriemen (verschraubt) Länge 360 mm
    Toothed belt (screwed)Article Number E1642

    length 360 mm

  • [Translate to English:] Zahnriemen (verschraubt) Länge 460 mm
    Toothed belt (screwed)Article Number E1861

    length 460 mm

  • [Translate to English:] Ratsche – komplett (verschraubt) inkl. Zahnriemen 360 mm
    Ratched - complete (screwed)Article Number E1876

    including Toothed belt 360 mm

  • [Translate to English:] Kennzeichenträger
    Plate holderArticle Number E1639

    X21 S, X31 S, P22 S, P32 S, F22, F32, F32 XL, F42

  • [Translate to English:] Rücklichtglas (Links)
    Rear light glass (left)Article Number E1636

    X21 S, X31 S, P22 S, P32 S, F22, F32, F32 XL, F42

  • [Translate to English:] Rücklichtglas (Rechts)
    Rear light glass (right)Article Number E1637

    X21 S, X31 S, P22 S, P32 S, F22, F32, F32 XL, F42

  • Rear light setArticle Number E1673

    including cable & connector

    P32 S

  • [Translate to English:] Ersatzschlüssel (1 Satz = 2 Stück)
    Spare keys (1 set = 2 pcs.)Article Number E1550

    Please mention your locking number.

  • Foot pedal for bike rackArticle Number Art.-Nr. E1662
